atem mini pro magic accessory






ATEM mini pro is a professional hdmi video switcher

it have some connector interface.

When we connect some accessory to atem mini pro, it will be more magic!

we will discuss difference connector of atem mini pro

every connector will match difference accessory!!



atem mini pro have many connector interface.

1. USB-C webcam output of atem mini pro

2. four channel HDMI input.

3. HDMI OUTPUT: PGM or multiview one of it.

4. RTMP RJ45 output.

we will introduce you accessory adapter for difference connector




 1. USB-C webcam output of atem mini pro


1.1 USB WEBCAM splitter

 purchase link

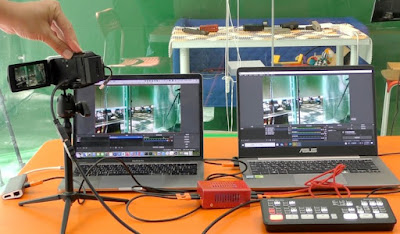

 When USB-C webcam output of atem mini (pro) cconnect this adapte,

 it will become two USB-C webcam output

Two PC can do independent dual live streaming!!

one connect to android. it can be as PGM monitor

the another one connect to PC. it can do live streaming



1.2 USB WEBCAM to HDMI / iOS adapter




 purchase link

 usb-c webcam of atem can live streaming on a iPad



Turn USB-C webcam of atem into HDMI output

it can be as PGM hdmi.

when you turn connect atem hdmi output as multivew and add this pgm,

the pgm and multivew show at the same time

 atem mini pro be PGM  hdmi video &. multi view video together




2.  HDMI output of atem mini pro


2.1 FEBON iOS hdmi capture card

purchase link

  When you connect this adapter, the hdmi output of atem can be live streaming on a iPad

  facebook live, youtube live and etc.







iPad as mutiview monitor of atem mini pro

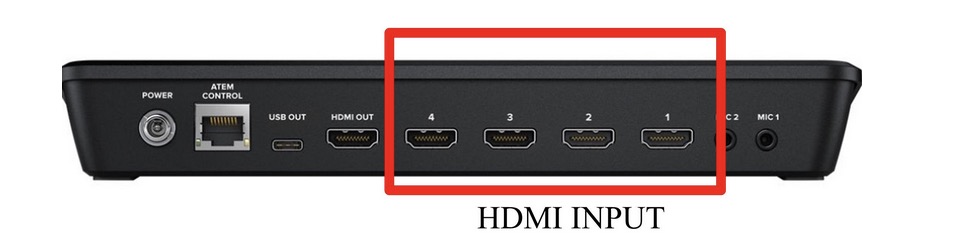

3. HDMI INPUT of  ATEM MINI PRO


atem mini pro video source is just hdmi input.

Could we connect a usb webcam ?

could we connect a DJI Pocket 2?

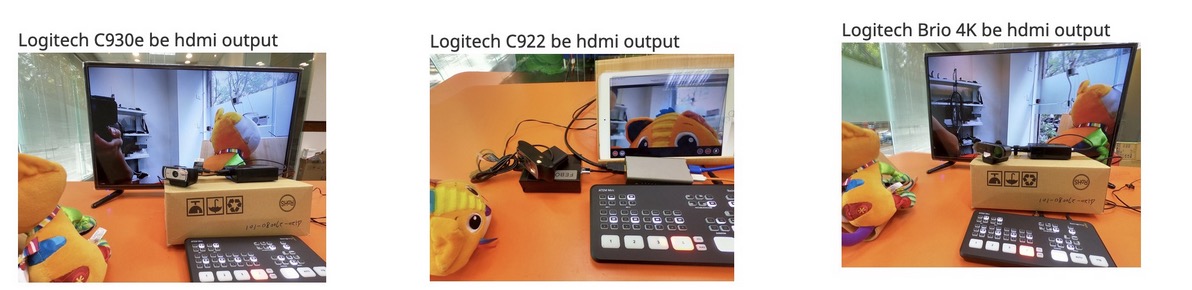

3.1 FEBON Logitech webcam / MEVO START to hdmi adapter

 purchase link

Logitech webcam will become HDMI output!!




3.2 USB WEBCAM to iOS / HDMI adapter

 purchase link









3.3 RTMP to HDMI adapter

 purchase link

FEBON local intranet Ethernet RTMP to hdmi adapter can turn RTMP into HDMI output.

some live streaming sport camera do not have hdmi output.
if camera do not have hdmi output, we can turn Intranet custom RTMP streaming into HDMI.
( local Ethernet network RTMP to hdmi )
eg:
DJP Pocket 2 hdmi output
MEVO Start be hdmi output by local rtmp streaming
OSMO action be hdmi output by local rtmp streaming
atem mini pro be extra clean hdmi output
DJI OSMO action be hdmi output (tv out)
SJ10 Pro action camera be hdmi output




4. RJ45 of ATEM MINI PRO

Turn ATEM MINI pro RTMP into HDMI ! create a new PGM hdmi output!

RTMP to hdmi dapter

purchase link



ATEM MINI PRO hdmi output can select multiview or pgm

at the same time, you just can select only one

we can turn its RJ45 RTMP into HDMI OUTPUT.

So,  when we select hdmi output for multiview , we will have mutlivew and pgm at the same time

multivew : from atem mini pro hdmi output

pgm:  create by " turn rj45 rtmp to hdmi "
