iPad as Monitor or live streaming by HDMI to lightning wire connetor



You can let UVC devcie to display on iOS ( iPad iPhone)

UVC device means uvc webcam ,  uvc grabber card and etc


if you connect the UVC HDMI capture card, it can let hdmi source display on iOS


USE Limitation

1. No Audio and no live streaming
2.some iPad /iPhone CAN NOT charge and use at the same time
3. Some iPad /iPhone  will show error message.
   But it still can use


Product compatible
1. iOS9 ~ iOS11
2. iPhone 5 C level up

iOS app: "WIFI image"
1. live show video  ( No Audio)
2.record
3. still picture
4. UVC resolution can be selected

Product component
1. FEBON180 UVC HDMI GRABBER CARD  ( HDMI to UVC webcam like)



3. DC 5V power adapter






Prepare by yourself
iPhone / iPad lightning charge line

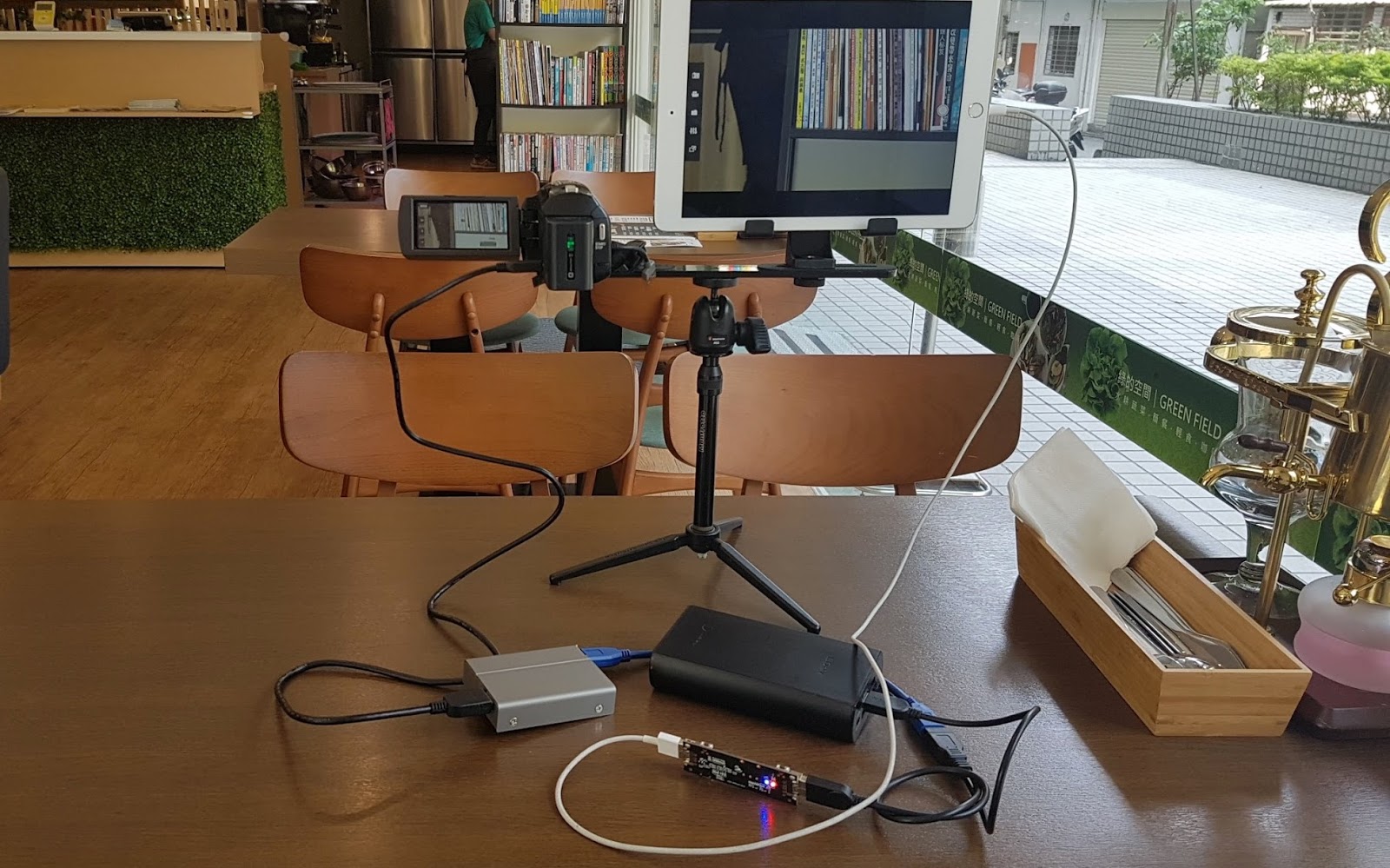

application 1:  live streaming
live streaming limitation
1. CAN NOT charge and use at the same time
2.audio is just from iPad mic
3. facebook live is just for personal . No group

need two app to do
app1: wifi image -> to display live video
app2: Durecorder live ->  to let iPhone iPad screen be live streaming









application 2: iPad as a monitor

Grabber card1: FBON180 UVC HDMI GRABBER CARD

 FEBON180 UVC HDMI grabber card+ uvc webcam to lightning converter

Special Total price: US$249





Grabber card2 : Magewell - Provide HD/SD Video Capture Cards

Magewell XI100DUSB-HDMI Capture+ UVC webcam to lightning converter

price: US$300+US$99= US$399

Magewell is just yuv output.
the frame rate on iOS is not good.






Grabber card 3: ezcap287 uvc hdmi capture card

ezcap287 uvc hdmi grabber card + uvc webcam to lightning to converter

Price:  US$90 +US$99= US$189

The case of ezcap287 is not good. the case will be separated




Grabber card 3AVerMedia ExtremeCap UVC (BU110)

BU110 UVC hdmi capture card+ UVC webcam  to lightning converter

price: US$250+ US$99= US$249






note: Camcorder be livestreaming with iOS

Comparison table
HDMI to lightning converter

1. CAN NOT charge and use
    at the same time
2.audio is just from iPad mic
3. facebook live is just for personal . No group NO fans




FEBON iCapture HDMI Capture card

1. Can charge and use at the same time

2. audio is just from external camcorder

3. auto lgoin facebook live for personal , group and fans
   auto login youtube live




PRICE US$249

package

1.FEBON180 UVC HDMI capture card

2.uvc webcam to lightning converter

3.DC 5V adapter


US$359

package

1.FEBON  iCapture hdmi capture card

2.USB3.0 line,micro usb line

3.APPLE Lightning to USB3.0 converter

4.DC 5V x 2 port adapter

5. camera bracket
another application
uvc to lightining converter can connect any uvc device

FEBON180  hdmi cpature card:hdmi to lightning
FEBON189 uvc sdi capture card: SDI to lightning
FEBON 264 CVBS capture card:CVBS to lightning
it just can can connect HDMI video
compatible iOS9~iOS11

iPhone 5c up

NO guarantee for new iOS12
iOS9~iOS11

iPhone 5cup

it also can work on new iOS12
iOS app WiFi image

1280x720 smooth
1920x1080 not smooth
Medialink live

1920x1080p very smooth
charge and use at the same time No charge can charge
app function app: wifi image
1.preview
2.record
3 take picture

app: Durecorder live
1. live streaming
medialink live
1.preview
2 .live steraming
live streaming app: wifi image + Durecorder live

1.need two app use together
2.facebook live is just for personla
3. audio is from iPad iPhone mic






 app: medialink live

 1.embedded facebook live for
  personal , group, fans live
2.embedded youtube live
3.custom rtmp
 4. audio is from external camcorder
