USB3.0 FEBON169 FEBON180 hdmi 擷取器組適用OBS STUDIO 去背直播 ( keyer effects)直播教學



使用這下面兩支擷取器實現OBS studio 去背







USB3.0 FEBON180 免驅HDMI 擷取器 USB3.0 FEBON169 免驅HDMI擷取器



FEBON180的聲音有做自動取樣率處理,
建議採用此擷取器設定成直播的聲音來源


FEBON169的聲音擷取沒有做自動取樣率處理
不建議用此台擷取器當作是聲音的來源
若一定要用這台的聲音來源,請到windows 音效管理員調整適當的聲音取樣率
通常是 48KHZ

自己準備綠背景和攝影機

不建議用CANON 單眼 : 因為沒有聲音,只有影像

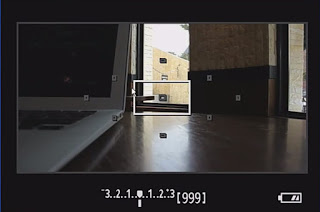

這類相機不支持  Clean HDMI (hdmi影像會顯示相機的資訊如對焦的符號 電池容量等)

canon 單眼相機會出現相機的資訊



DV 方面,不建議用 SONY  HDR-CX405, 這款的hdmi輸出只有影像沒有聲音



下圖是採用 SONY HDR-PJ675  亦可採用 SONY HDR-CX450




2021年7月8日 星期四

OBS (Open Broadcaster Software) let DV Camcorder livestreaming with facebook live Youtube live




How to let DV camcorder live streaming on PC?

OBS (open broadcaster software) is the best choice.

OBS have MAC version and windows version.


Besides OBS, it still have anther livesteaming software

for exmaple :  wirecast, xplit.....

This article is base on  OBS livestreaming  software.


summary:
1.how to judge your camcorder DSLR camera can be as video and audio source for live streaming use (clean hdmi or not)
 2. How to know the USB3.0 compatible issue
3. the basic OBS STUDIO setting facebook live and Youtube Live
 4. advance OBS techninal setting (GIF PNG PIP video ...)







How to use MAC OBS

The below video use facebook live



 USB2.0 FEBON168HDMI
grabber card
 USB3.0 FEBON169 HDMI
grabber card

 USB3.0 FEBON179 HDMI
grabber card

 VIDEO DEMO
 1.audio shfit 350-400ms
2.APPLE hardware
  compression
3.resolution 1280x720
 1.audio shfit 250-350ms
2.APPLE hardware
  compression
3.resolution 1280x720
 1. audio shfit 250-350ms
2.APPLE hardware
  compression
3.resolution 1280x720








 USB3.0 FEBON180HDM capture card
video demo

1.audio shfit 350-400ms2.APPLE hardware
  compression
3.resolution 1280x720



How to use WINDOWS OBS
The below video use facebook live


 USB2.0 FEBON168
HDMI grabber card




 1.audio shfit 250-350ms
2.hardware. compression
3.resolution 1280x720
 USB3.0 FEBON178
HDMI grabber card



1.audio shfit 150-250ms
2.hardware. compression
3.resolution 1280x720
 USB3.0 FEBON169 HDMI grabber card




1.audio shfit 150-250ms
2.hardware compression
3.resolution 1280x720
 USB3.0 FEBON179 HDMI
grabber card



1.audio shfit 150-250ms
2. hardware compression
3.resolution 1280x720




新推出!!! USB3.0 FEBON80 HDMI 擷取卡
Video demo

1.audio shfit 150-250ms
2.hardware. compression
3.resolution 1280x720





HDMI output of DV camcorder input PC.
and then use OBS to process the video  and then...... live upload into facebook / Youtube


diagram:






We can divided many things to discuss.

 -
-
-
-
-



Internet connecting


Internet is the basic problem.
if your video performance is  better but internet is not good, the livesstreaming will be bad


internet is the basic issue!!


Usually, we can see the internet speed on the end of OBS software

For example:
you can see the internet upload speed is 2726


if the number is below. 1000, the internet is bad!

it will occur the interrupt livesteaming!






W suggest that you can use the wire internet.

For MAC use,  you can add the " RJ45 to USB adapter"



internet main chip is  AX88772A


This chip AX88772A is dirverless for MAC OSX








DV camcorder:


 We always use HDMI output of camcorder as the video source


But, Not all of camorder have live hdmi output.

Although you can see the hdmi connector on the Camcorder,  it just for play back not live video



For examle:
Panasonic GF3 GF4 .

its hdmi output just for play back only





By the way, some camera hdmi  output is just video only and no audio

For example: Canon DSLR  (500d, 450d....7d......)


I DO NOT recommend that you use Canon as the video source.

reason:
1. no audio
2. video is just 1920x1080i output.

For USB2.0 FEOBN168 UVC HDMI grabber card, it will have a little up and down.





I suggest that you can use SONY DV camcorder as video / audio source



2021年7月1日 星期四

USB3.0 FEBON180 UVC HDMI capture card


plastic case:

-

-
-
Working with PC OBS STUDIO and live streaming
summary:
1.how to judge your camcorder DSLR camera can be as video and audio source for live streaming use (clean hdmi or not)


2. How to know the USB3.0 compatible issue


3. the basic OBS STUDIO setting facebook live and Youtube Live

4. advance OBS techninal setting (GIF PNG PIP video ...)





Working with iOS (iPad iPhone ) and live streaming
tool:
USB3.0 FEBON180 HDMI grabber card
UVC webcam to lightning converter

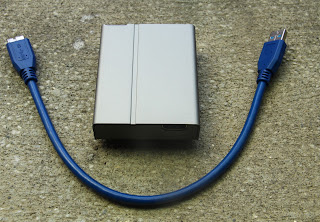

Metal Case:






 Tripod for  1/4-20 UNC threads




-
-
-
AUDIO auto detect sampling rate

 It can automatically detect the input audio formats and swift it to 48KHz PCM audio.





Follow standard UVC MJPG/YUV  for USB3.0  and USB2.0





USB3.0 MODE: up to 1920x1080p 60fps yuv/mjpg

   WINDOW8.1 /WINDOWS10 /ubuntu. + USB3.0 XHCI
    MAC OSX  10.11 /10.12    + USB3.0 XHCI
    (MAC OSX 10.13 CAN NOT work on USB3.0 mode. it is USB2.0 mode)

USB2.0 mode:
    it can compatible for any situation


USB3.0 high speed mode is up to 1920x1080p 60fps YUV /mjpg
USB2.0 normal mode (Android application) is up to 1920x1080p 30fps mjpg


 if your PC is not follow this conditions, it can not work on USB3.0 mode
you need add the usb2.0 line to become usb2.0 mode (as below picture)





-
-

如何正確測試出視訊擷取卡的視訊延遲
