2014年3月30日 星期日

201411 日本東京 /東北 第一天到仙台 松島海岸 青森

一下東京的羽田機場,

就馬上衝去買JR east pass,  坐新幹線直接到仙台,

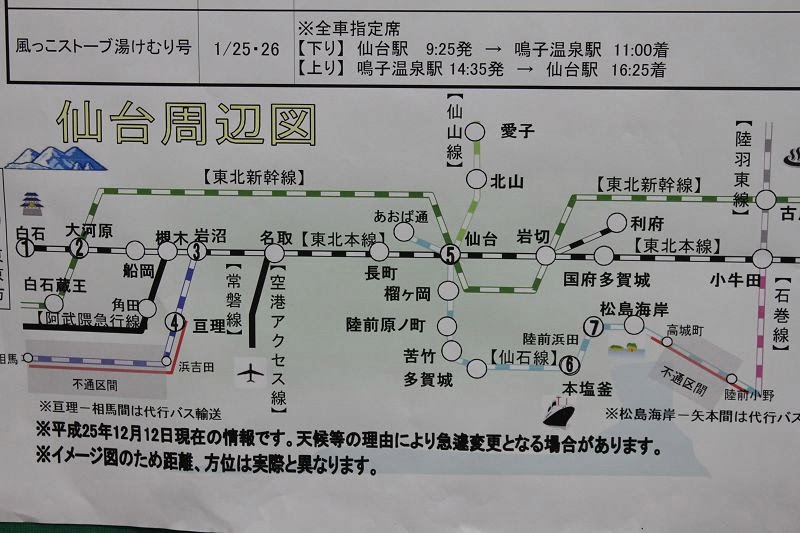

1/11 第一次使用:東京羽田  to 仙台  to  青森




a.羽田 to 東京 : 單軌列車 + JR 山手線






b.東京 to 仙台:東北新幹線










c 仙台 to 松島海岸 (在過幾站就是災區): JR
d:松島海岸 to 仙台 :JR







e:仙台 to 青森: 東北新幹線











一下羽田機場,就趕快去買JR EAST PASS,

先衝到仙台的松島海岸




































2014年3月18日 星期二

NEXUS 7 UVC









1.UVC CVBS  grabber card  connect backup camera






2. UVC HDMI grabber card connect with HDMI output camcoder

2014年3月8日 星期六

含電池 無線顯微鏡 (wifi 顯微鏡 ) iPad iPhone Android windows MAC OSX 都能用

 iPad / android / WINDOWS /MAC OSX

Work on 4 ea device at the same time!















超穩定的腳架,可以自由伸縮 10cm

市面上顯微鏡腳架,由於底盤不夠重,很容易翻倒,

我們的腳架是非常穩定,光是腳架的成本就要1500元






2014年3月1日 星期六

FEBON100 Drvier free (No driver install) CVBS (a/v) input grabber user manual










<2023/03 upgrade!! Turn USB2.0 into USB3.0>
How to buy?
 new version USB3.0 FEBON100 UVC CVBS capture card








Standard UVC Webcam Like
No Driver for MAC OSX  / widnows series

Works on Embedded Android / Linux





Why  USB3.0 FEBON 100 USB CVBS UVC grabber Card

Follow standard UVC (USB VIDEO CLASS). USB webcam like!
Driver free for MAC and windows


If you plug in UVC grabber card into your MAC,  MAC will think it is a general usb webcam.

It will be driver free on X86 system 32bit or 64bit.
Driver free for  MAC OSX , windows xp, windows 7, windows 8, VISTA.


For embedded system Linux or Android,


If you can let usb webcam work, FEBON 100 UVC grabber card will also work.
 To save your time! and easy build in in your embedded system.






Good Video Quality
3D comb filter , 3D De-interlace, 3D Noise Reduction







FEBON 100 UVC grabber card build in pure hardware base video process.

Without using your computing power, it will let your video quality be better than others.


includes 3D de-interlace , 3D comb filter and 3D Noise reduction.


Before
After


NO 3D comb filter

no-3d-comb




3D comb filter

3d-comb
NO 3D de-interlace

no-de-interlace
3D de-interlace

de-inerlace





3~4 ea UVC Grabber card work on Windows PC at the same time




Datasheet


       Download link






Driver Free for MAC OSX

How to use on MAC? (Build-in QuickTime Player)


STEP 1
Plug in FEBON 100 UVC grabber

step-1




STEP 2
OPEN QuickTime player

step-2
STEP 3
choose the  "file" and then " new video record

step-3
STEP 4:

To click “▼”



 step-4


STEP 5:

To choose “ usb camera”

and unknown audio

step5
STEP 6:





step-6

Woks on another professional Video AP software of MAC OSX

General speaking, if the software in MAC can get the video from external webcam,driver free uvc grabber also can work on it.

So far, just only one software iMovie can not work.
The most software on MAC for example,  QuickTime player, QuickTime player pro, FaceTime, PhotoBooth, SKYPE, YoTube , professional VJ (visual Jockey)  modul8,AVENUE, istopMotion,
ustream, Final cut pro x ( fcp x) , final cut pro x tutorial


The more demo are as the link as below








Driver Free for Windows.

FEBON 100 follow UVC. The level is  higher than directshow.

It works on  windows AP that follow NOT only directshow but also  usb webcm only .

If your software can let general usb webcam works ( for example, logitech C525 C310), FEBON 100 UVC grabber card will also work.


windows SKYPE, windows amcap, windows KMPlayer,  windows Youtube, Arcsoft webcam compression, windows VLC,









3~4 pics grabber card work on MAC /Windows at the same time








Windows just can accept one video grabber card at the same time.

FEBON 100 have a special firmware design.

windows can accept more than one FEBON 100 UVC grabber card and at least 3 pics.


Not only windows But also MACbook and MACbook pro.




Directly plug in  Linux or Android



 NOT all of Android can let UVC webcam work!!

if your uvc webcam ( for example: logitech c310 c525) can work on Android,

FEBON100 UVC grabber card will also work!!


For android /linux  application, NO Refund!!!

I can not guarantee all of android.

If you want to buy, you must take the risk that it can not work on android.




Android module platform



You must build in Linux UVC driver into Android OS.

It is NOT very easy. you must own the SDK of main android SOC chip!!
FEBON 100 UVC usb capture (grabber) card will be as an "UVC Bulk or ISO webcam"
If you can let general usb uvc webcam work (for example,Logitech c310 c525), FEBON 100 UVC grabber card will also work.

The demo is as below "Play from UVC Bulk Camera to Android UVC Player"



Android tablet



You must build in Linux UVC driver into Android OS.

It is NOT very easy. you must own the SDK of main android SOC chip!!
FEBON 100 UVC usb capture (grabber) card will be as an "UVC Bulk or ISO webcam"
If you can let general usb uvc webcam work (for example,Logitech c310 c525), FEBON 100 UVC grabber card will also work.






Raspberry Pi
FEBON 100 UVC grabber card + Raspberry Pi + usb wifi dongle= video server

On Raspberry pi, CVBS signal is captured by FEBON100  UVC grabber card and then transmitted video stream.

AUSUS NEXUS 7 capture the video stream by Wireless connecting.











Raspberry Pi display FEBON100 UVC CVBS grabber card














backupcam









ASUS Google NEXUS 7

UVC Grabber card works on NEXUS 7

Before use, Please do the root and  follow two step
step 1:
http://forum.xda-developers.com/showthread.php?t=2100452
step 2:
http://forum.xda-developers.com/showpost.php?p=22884164&postcount=3




Video and Audio Sync issue
UVC (video) and UAC (AUDIO ) is two independence stream.
The output from uvc grabber cad is sync.


After the PC cpu Process, it may have occur No Sync ISSUE.

This event is the same as the uvc webcam ( logitech webcam, Microsoft webcam)

All of UVC device ( camera , grabber card...) have this Sync issue.

It is due to the PC CPU process priority.

It need the software AP to build the SYNC function for Audio and video

Case 1: No SYNC function for audio and video

   For example: windows amcap (record),  MAC quicktime ( record)...

Case 2:  Own SYNC  function for audio and vide

  For example:  OBS,  Live google hangouts Youtube , skype.....

  (The No sync event will be smaller)




MAC OBS record



windows OBS record







Comparsion table of  FEBON100 UVC CVBS capture card and FEBON264 UVC CVBS grabber card




FEBON100 UVC CVBS GRABBER CARD

FEBON264 UVC H.264 GRABBER CARD (NTSC)

FEBON264 UVC H.264 GRABBER CARD (PAL)

UVC OUTPUT

1. auto NTSC /PAL mode

(up to 30fps)

640x480YUV/ MJPG

320x 240 YUV /MJPG

2. NTSC only mode

(up to 30fps)

720x480 MJPG

640x480 YUV/ MJPG

320x 240 YUV /MJPG

3. PAL Only Mode

(up to 25fps)

720x576 MJPG

640x480 YUV/ MJPG

320x 240 YUV /MJPG

NTSC INPUT

H.264/MJPG /YUV

720x480 30FPS

640x480 30FPS

320x 240 30FPS











note:

720X480P 30fps YUV
(NO compression)

PAL INPUT

H.264/MJPG /YUV

720x576 25FPS

640x480 25FPS

320x 240 25FPS











note:

720X576P 25fps YUV
(NO compression)

VIDEO enhancement

3D De-interlace

3D comb filter

3D Noise reduction

3D De-interlace3D comb filter

3D de-interlace only

Customize

PID /VID/ Product name



YES



NO



NO

USB MODE


ISO / BULK

ISO ONLY

ISO ONLY

Time latency

0.25-0.35sec

Average:0.3sec

0.2-0.3 sec

Average :0.25 sec

0.2-0.3 sec

Average :0.25 sec

power consumption



380mA @ 5V

YUV 260mA –270 mA @5V

MJPG 260mA -300mA@5V

H.264 300Ma -340mA@5V


YUV 260mA – 270 mA @5V

MJPG 260mA -300mA@5V

H.264 300Ma -340mA@5V





Mac専用の 必要はないドライバ(Driver free ) USBビデオキャプチャユニット








FAQ

 If UVC grabber card can NOT work, How to solve?

 How to change F/W?


WEBCAM PID & VID


Could FEBON100 UVC grabber card work on Android???



[NO driver ] UVC grabber card is the best choice for web conferencing (video conferencing) on MAC /WIDNOWS


CVBS to UVC

HDMI to  UVC
3G-SDI / HD-SDI to UVC


All of them are NO driver
for  MAC OSX / widndows xp , Vista,  win7, win 8, ....



FEBON UVC grabber card series can compatible for MAC /WIDNOWS

For example:

MAC: mac skype , mac ustream , Google+ Hangouts  , wirecast , FacTime, adobe flash.


WINDOWS: skype, usteram, google+ Hangouts, ...






FEBON UVC grabber card list



1. FEBON100 UVC USB CVBS grabber card.








How to use??

The professional video conference camera are have 3 video output interface

CVBS  /HDMI  (DVI) / SDI


Brand namepictureVIDEO OUTPUT
SONY EVI-D70螢幕快照 2014-03-02 下午1.39.47 CVBS (AV )

FEBON100 UVC CVBS grabber card

SONY

EVI-HD7V EVI-HD3V
螢幕快照 2014-03-02 下午1.51.50DVI (HDMI output) 1920x1080p /1280X720P

FEBON168 UVC HDMI grabber card




SDI VIDEO

conference camera
螢幕快照 2014-03-02 下午1.54.34 SDI output 1920x1080p /1280x720p

FEBON188 UVC SDI grabber card







How to control the uvc output resolution on MAC?

FEBON168 (1080P version) uvc HDMI grabber card have three resolution 1280x720, 1366x768, 1920x1080.

MAC skype just eat 1280x720.  we can not choice the uvc uvc output resolution.



 MAC free AP " Wirecast"  can solve this problem .

This AP can control the output resolution of UVC device.
It is like the windows AMCAP.
But it is more powerful than AMCAP.
Because it can control the output resolution.

Download link:
http://download.cnet.com/Wirecast/3000-18515_4-49434.html


The experiment as below is  FEBON168 UVC HDMI grabber  as the sample.
