HOW to Turn USB webcam to HDMI (TV out)



Product 1:
Logitech webcam to HDMI adapter
Buy here



1. design for all of Logitech webcam



2. good video frame rate for Logitech cam

3. Turn on Time is about 15 sec
 (DO NOT need USB mouse)


4. DO Not have good compatible for anther webcam








 Product 2:
UVC WEBCAM to HDMI
Buy here



1. Turn on time is 11 sec
(DO NOT need USB mouse)


2. Not only be for Logitech cam but also for anther webcam

3. video frame is not better for Logitech webcam









Product 3:
UVC WEBCAM to HDMI
Buy here

(Need USB mouse)


1. Good UVC webcam compatible
  (Not only be for Logitech cam but also  for anther webcam)

2. cost economic


3. good video frame rate


4. turn on time is about 40 sec

5.Need USB mouse






 Product 1: Logitech webcam / MEVO START  to hdmi adapter

How to buy?
https://www.febon.net/products/febon-logitech-webcam-to-hdmi-converter

1. it just need 14 sec!


2. Do not use keyboard & Mouse
3. Good video frame rate for Logitech webcam / MEVO start

4. Good video frame rate for IPEVO V4K / DO-CAM document camera


WORK for 100% sure
(usb webcam  MUST be at least uvc 1280x720 30fps mjpg output)
Logitech c270, c310,c525, c92x, c93x,
BCC950 , Brio 4k,
IPEVO V4K
Microsoft webcam
NEVO START
AVer CAM340+  , AVer CAM520 PRO
No WORK USB-C OUTPUT OF ATEM MINI
China low-end USB WEBCAM ( DO NOT have 1280x720 mjpg)

1.  FEBON Logitech webcam is 100% compatible for  Logitech webcam series
  eg: c310, c525, c270, Brio 4k, c930, c922  , BCC950. & MEVO Start camera


  Turn Logitech Brio 4k CAM into hdmi with TV


 Turn C930 / C922 Into hdmi output and connect with video switcher atem mini





2. We do not make sure if another usb camera  can work on this adapter

Turn MEVO start into HDMI with TV

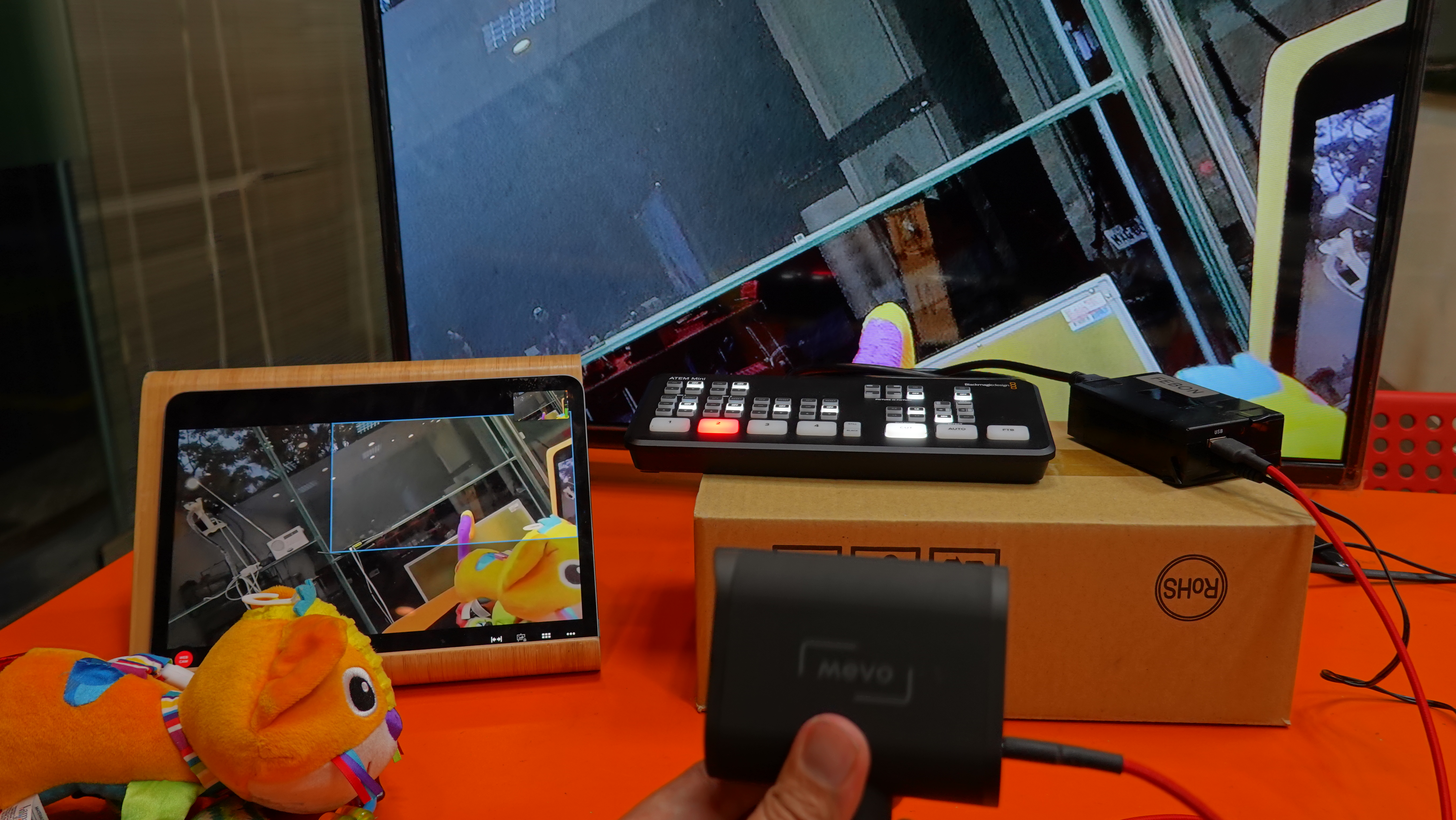

Turn MEVO start into HDMI with VIDEO switcher atem mini


Turn IPEVO DO-CAM to hdmi and connect with hdmi video switcher atem mini


Turn IPEVO v4k ultra-hd to hdmi and connect with hdmi video switcher atem mini















Product 2: usb webcam to hdmi adapter

How to buy?
https://www.febon.net/products/uvc-to-hdmi-uvc-to-ios

" uvc webcam to hdmi adapter without usb mouse"


1. it just need 11 sec!




---------------------------------------------------------------------------------

Product 3: usb webcam to hdmi adapter, need USB mouse

How to buy?
https://www.febon.net/products/usb-uvc-webcam-to-hdmi-adpater


1.need usb mouse
2. turn on time is about 40sec








How to let USB UVC webcam to become HDMI output and dispaly on TV?

You can use "FEBON uvc webcam to hdmi adapter"




UVC webcam is stanadard uvc driver.
eg: logitech C310 C525 , USB microscope. and etc


Before you buy, please notice as below
1. it need usb mouse
2. turn on time is about 40 sec
3. Not all of webcam can work.

Most of usb webcam can work on this adadpter
① This adapter can connect USB2.0 formal webcam
    eg: Logitech C310, C525, C270, BCC950 , BRIO 4K HD, C920  Microsoft HD-3000 lifeCam, IPEVO P2V, ZIGGI (old version), oitez DP-M06 microscope,
    USB endoscope (cheap China made) , USB telescope (medical level), OSTEC skin microscope,

② This adapter CAN NOT connect UVC1.5 version
   eg: USB output of  ATEM mini video switcher

③ This adapter CAN NOT connect USB3.0 mode uvc
     you need check if your USB3.0 video device can be drop into USB2.0 mode

         USB3.0 elgato Cam Link capture card CAN NOT drop into USB2.0

  Not all of usb webcam can work.
   Before shipping, we will try my best to test the  20 difference usb webcam




Prepare

1. prepare FEBON uvc webcam to hdmi adapter

2. prepare  usb mouse

3. prepare usb webcam ( eg: logitech c310 c525 bc310, usb endoscpoe microscope)





How to do?

STEP1: Plug the DC 5V power

STEP2: Plug the hdmi source with TV

STEP3: after 30 sec.......

STEP4: open your TV  and you will see the video

STEP5: open software






Application:

1. usb microscope dispaly on TV ( USB microscope to TV out)



2. logitech usb webcam C310 become hdmi output and display on TV



3. USB endoscope snake camera become HDMI output
