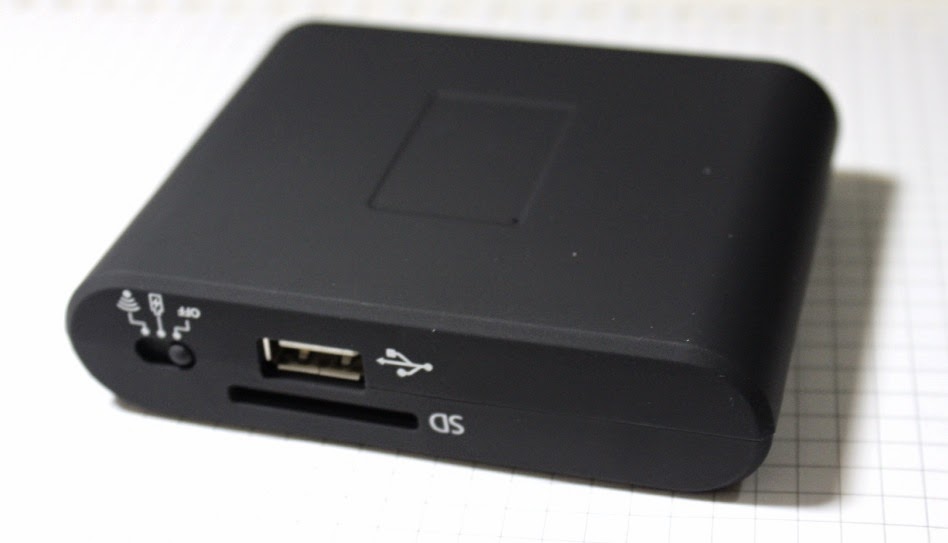

FEBON220 PLUS UVC WIFI AP ROUTER USER MANUAL




MJEPG UVC USB WEBCAM LIVE STREAM ( UP TO 1920x1080p)

USB microscope, USB document, USB UVC hdmi capture card, USB UVC CVBS capture card

USB WEBCAM TO Wireless


As a Power bank
Built-in rechargeable 5200mAh battery for up to 14 hours of continuous usage

 As a Wi-Fi AP Router.
Supports Router modes and Repeater modes. This makes it versatile enough to satisfy almost any basic wireless application you require when on the road.


As a Personal Cloud Storage

USB 2.0; SDHC/SDXC card slot






VIDEO STREAM DEVICE APPLICATION


USB Document camera (IPEVO P2V USB camera)

螢幕快照 2014-04-23 下午7.04.07


USB Microscope


螢幕快照 2014-04-23 下午8.24.44






USB UVC HDMI capture card  (Wireless HDMI video server)


Canon Kiss X3  (720x480p)
螢幕快照 2014-04-23 下午8.33.29


SONY NEX-VG20  (1280x720p)
螢幕快照 2014-04-23 下午8.56.53


The more camera support list is as below link

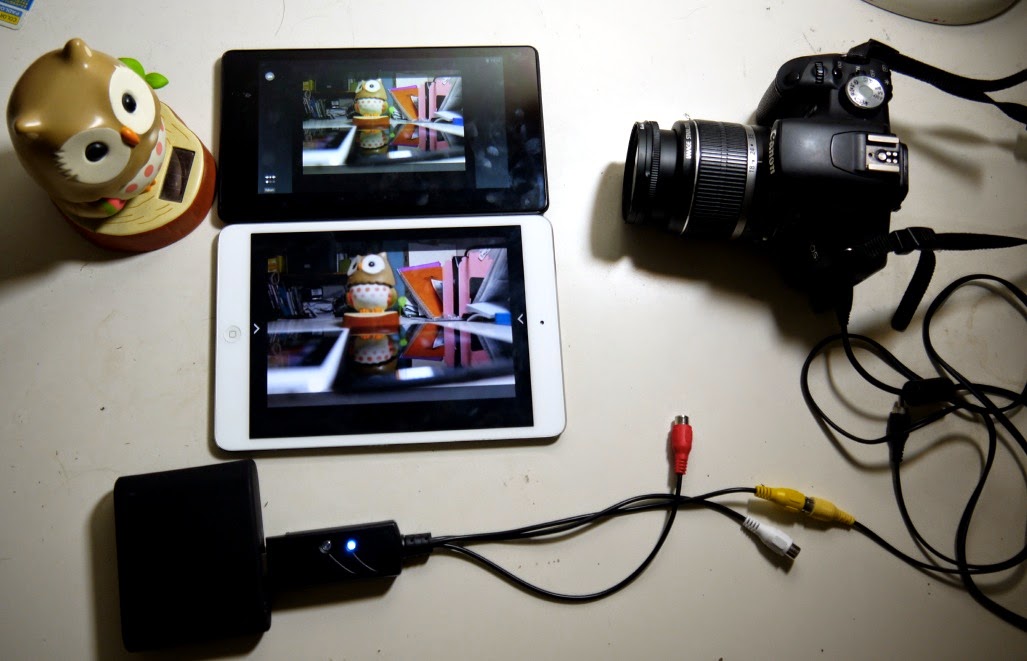

FEBON100 UVC CVBS (AV) GRABBER card

Canon kiss x3 (500d)







USB UVC 3G-SDI Capture card

螢幕快照 2014-04-23 下午9.03.49




FEBON220 PLUS Wireless stream as GOOGLE+ hangouts



USB fisheye camera become wireless fisheye camera  and broadcast into internet
1.USB fisheye camera connect with FEBON220 plus uvc wifi router.

2. MAC AIR connect with FEBON220 PLUS uvc wifi ROUTER SSID “ Wireless 11n AP”

3. USE MAC VLC to open MJEPG video stream.

4.OPEN google+ hangouts to share VLC



5. broadcast into internet.





FEBON220 PLUS UVC WIFI AP ROUTER +FEBON168 UVC HDMI capture card = Wireless hdmi video server

1.USB HDMI capture cardconnect with FEBON220 plus uvc wifi router.

2. windows 7 connect with FEBON220 PLUS uvc wifi ROUTER SSID “ Wireless 11n AP”

3. USE widnows  7 software “manycam” to let wirless stream become virual webcam

4.OPEN google+ hangouts to get virtual webcam

5. broadcast into internet.



6. MAC AIR can see the broadcast.





  Wireless IPEVO P2V document camera broadcast on MAC GOOGLE+ hangouts and dipaly on iPad
1. IPEVO USB P2V document + FEBON220PLUS = Wireless document camera with AP ROUTER function

2. it can broadcast display on iPad for local intranet use
   For local intranet side, it can broadcast at least 10 ea iPad / iPhone / Android at the same time

3. It also can broadcast on internet by Google+ hangouts.



4. This video clip will show you intranet broadcast and internet broadcast.













FEBON220 PLUS UVC WIFI AP ROUTER SPEC






Wireless Speed
Up to 150Mbps

Standards

IEEE 802.11 b/g/n

Wireless modes

Router and Repeater

Battery

5200mAh Li-Polymer Rechargeable Battery

Max Output Current

2.1A

Security

WEP, WPA/WPA2, WPA-Mixed encryption

UVC INPUT

UVC 1.1 Version with MJPEG

VIDEO output

Up to 1920x1080p

SD standard support

SD, SDHC, SDXC

Wireless Storage Read/Write Performance

9.05/6.65MB per sec (40MHz)

Available ports

USB 2.0; SDHC/SDXC card slot; Ethernet RJ-45 10/100Mbps; Micro-USB for charging

Dimensions(L*W*H)

3.5"*2.9"*0.9"

Weight

6.17 ounces

Certification

FCC CE NCC




Comparison table





Dino-Lite Wi-Fi Adapter ( WF-10)

FEBON220PLUS UVC WIFI AP ROUTER
Price US$289 US$180
Battery 1880mAh Li-Polymer 5200mAh Li-Polymer

Power bank for iPad /iPhone /android phone
Wi-FI AP mode only AP MODE

AP Client mode


Wi-Fi repeat mode





When you use  WIFI repeat mode, you can see the microscope and go to internet.
compatible and resolution it just for Dino-lite microscope USB2.0 FEBON capture card

Dino-lite microscope


FEBON microscope


iPEVO document camera


USB UVC MJPEG camera





up to 1920x1080p output
Weight and dimension 6.17 ounces




3.5"*2.9"*0.9"
certification doucment NCC (TAIWAN)

FCC ( North America)


CE


Telec (JAPAN)


KCC (Korea)


Material Safety Data Sheet (MSDS)
